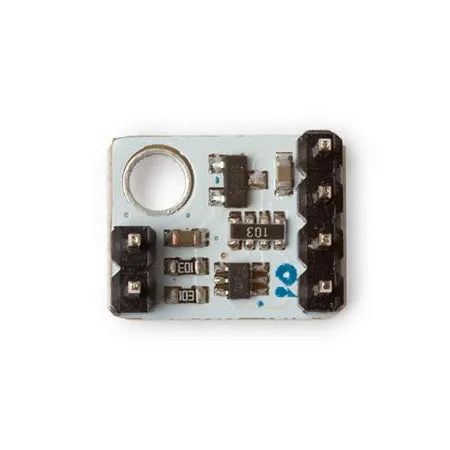

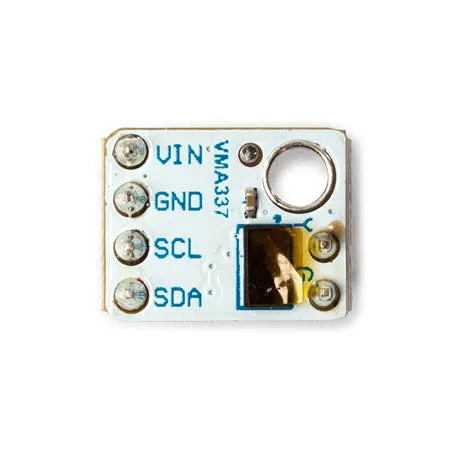

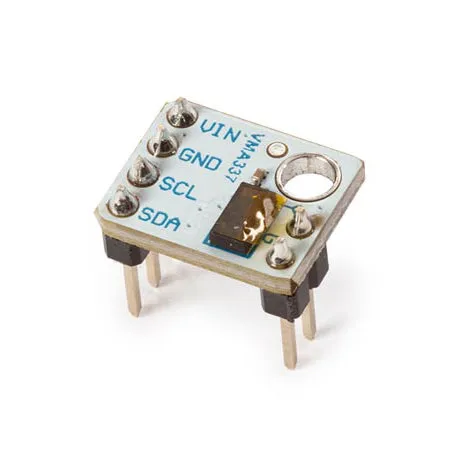

This breakout board is a time-of-flight or laser-ranging sensor that can measure the range to a target object of up to 2 m away.

Features

• ST's VL53L0X laser-ranging sensor

Specifications

• power supply: 3.3 - 5 VDC
• infrared emitter: 940 nm
• measuring range: 30 to 2000 mm
• ranging accuracy: /- 3 %
• sampling time: <= 30 ms
• operating temperature: -20 to 70 °C
• interface type : I2C
• supply current: 10 mA
• XSHUT and GDPIO voltage: max 2.8 V
