Product Details
＋
Product Specifications
The Starling 2 Max is -powered, NDAA-compliant development drone supercharged by specifically designed for outdoor, computer vision-based, long-range dead reckoning with a 500g payload capacity. Powered by Blue UAS Framework autopilot, VOXL 2, the Starling 2 Max weighs 500g and boasts an impressive 55 minutes of autonomous flight time.
Best-in-class Compute and Flight Time
- 500g weight
- 322mm airframe
- 180mm folding propellers
- 55 minutes flight time
- 500g additional payload capacity
Powered by VOXL 2
- is powered by Qualcomm QRB5165: 8 cores up to 3.091GHz, 8GB LPDDR5

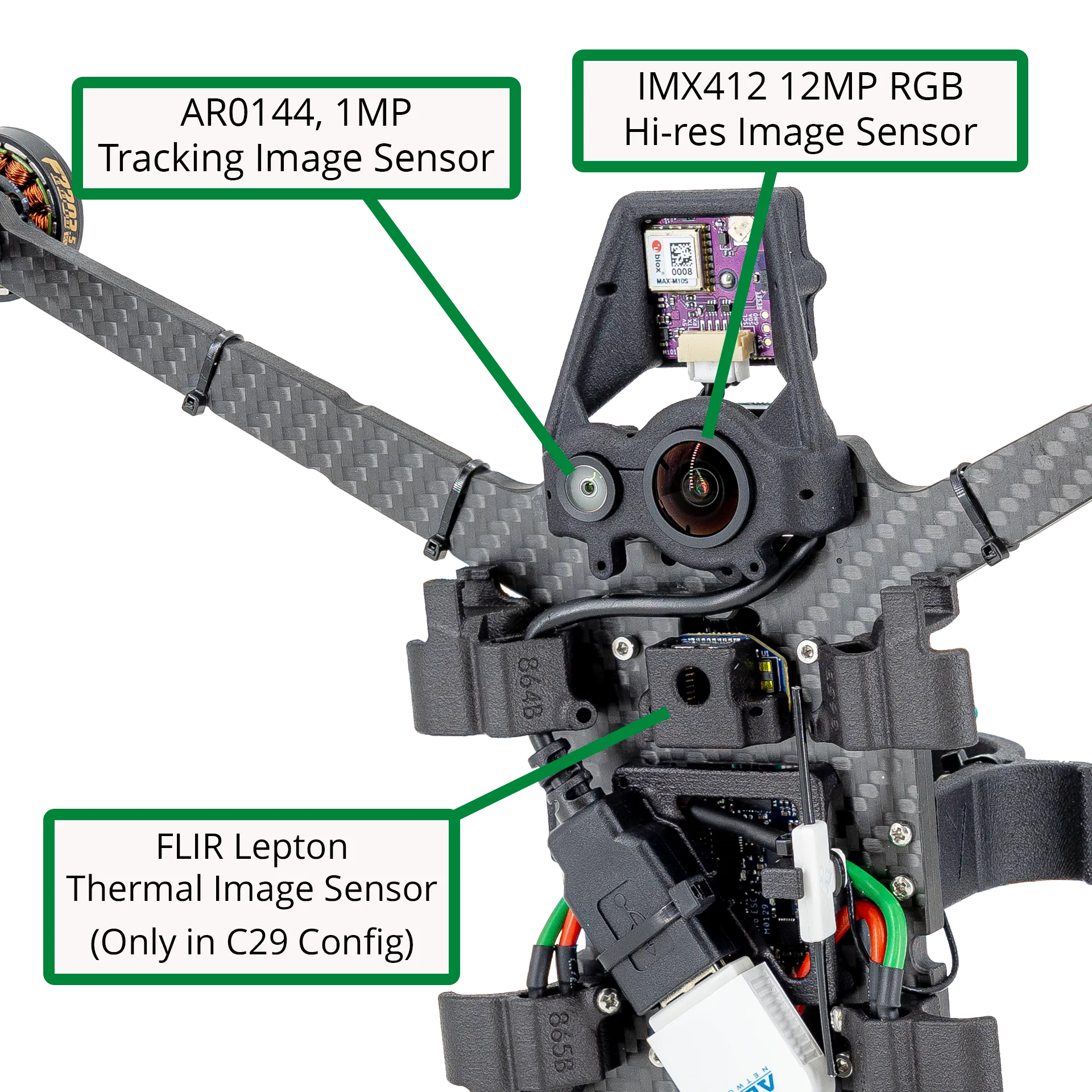

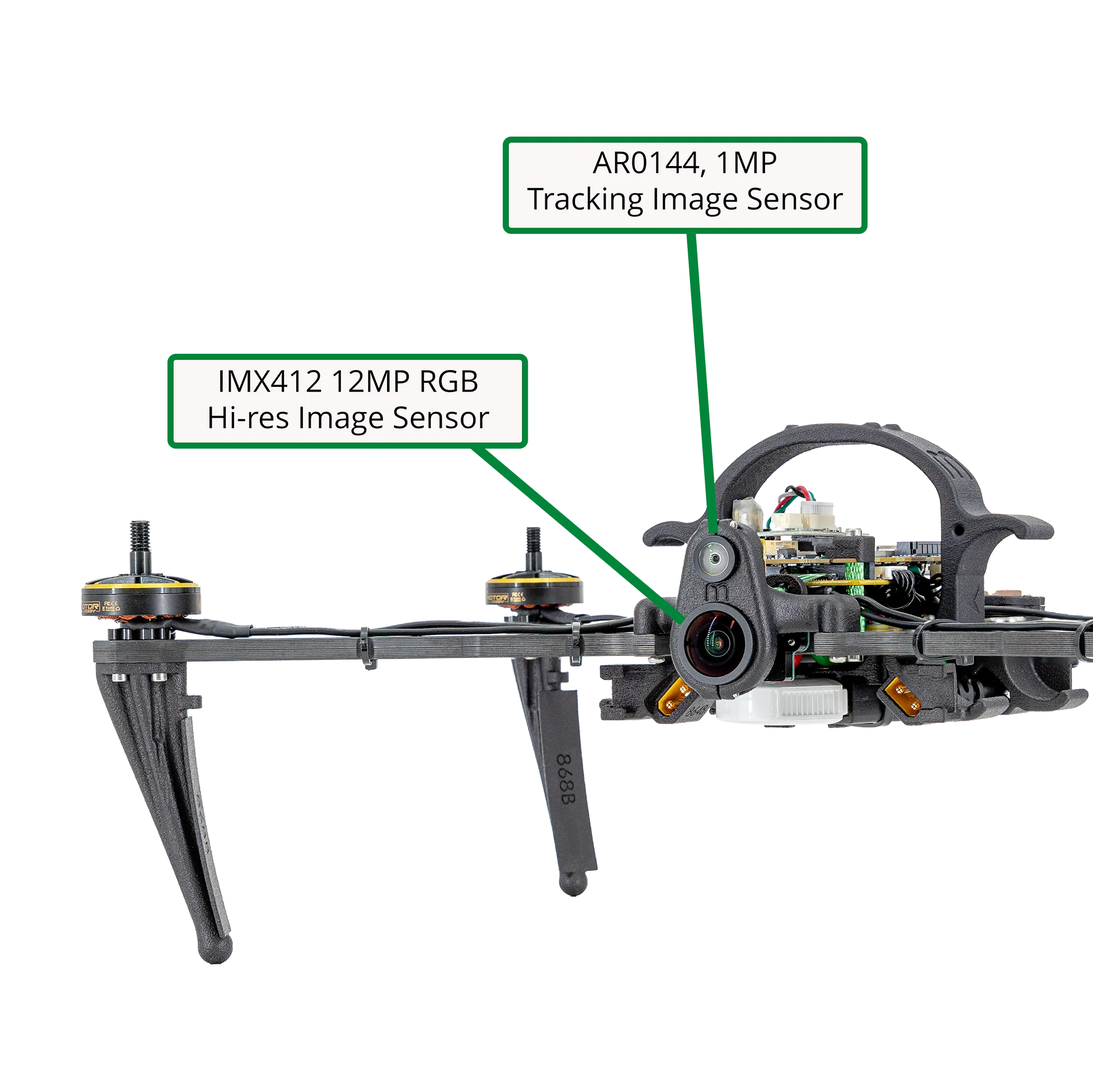

- Abundance of perception capabilities built into Starling 2 Max with dual Sony IMX412 and dual OnSemi AR0144 image sensors
- Integrated flight controller on DSP with TDK ICM-42688 IMU and ICP-10111 Barometer
Software Features
- Advanced Autonomy
- Visual Inertial Odometry to navigate in GPS denied environments
- TFLite Neural Networks run object classification, detection, and other models
- Open-source software: OpenCV, ROS 2, Docker, PX4 integrated flight controller
- Built-in Connectivity Options
- IP Datalink
- Wi-Fi
- Microhard
- 4G
- R/C
- Ghost Atto
- ELRS (Express LRS) R/C
- IP Datalink
Technical Specifications
(Not Included) - ISDT Q6 Nano Lipo Charger/Discharger
What's Included
Camera Configurations
| Camera Config | High-resolution | Tracking | ToF | Thermal |
| C28 | Dual 12MP RGB | Dual 1MP Tracking | No | No |
| C29 | Dual 12MP RGB | Dual 1MP Tracking | Yes | No |
| Future Capability - No ETA | Dual 12MP RGB | Dual 1MP Tracking | No | FLIR Lepton |
R/C Configurations
Two remote control options are supported
| R/C Config | Receiver | Transmitter (If Applicable) | Frequency |
| -T9 | Ghost Atto | FPV.ctrl UberLite | 2.4GHz |
| -T7 | BetaFPV Nano RX Receiver | iFlight Commando 8 | 915MHz |
Modem Configurations
| Modem Config | Description |
| -M28-T9 | WiFi and Ghost Atto |
| -M3-T9 | Microhard |
| -M11-T9 | Microhard pMDDL2450, WiFi and Ghost Atto |
| -M20-T9 | 4G LTE (North America), WiFi and Ghost Atto |
| -M24-T9 | 5G, WiFi and Ghost Atto |
| -M28-T7 | WiFi and ELRS (not NDAA-compliant) |
Kit Configurations
| Kit Config | Description |
| -K0 | Drone Only |
| -K1 | Drone and Battery Pack |
| -K2 | Drone with Battery Pack and Controller |
| -K3 | Drone with Case, Battery Pack, wall power supply and Controller |
Export Information
| Item | Value |
| EAR99 | |
| Harmonized Tariff Schedule (HTS) Code | 8802.11.0190 |
| Country of Origin | USA |
| Radio Frequencies Used | WiFi: 2.4GHz / 5GHz pMDDL2450: 2.4GHz 4G & 5G: Worldwide cellular frequencies R/C with -T7 in SKU: 915MHz R/C with -T9 in SKU: 2.4GHz |
| RoHS Compliant | Yes |
