| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1064573 |
| Body Style | Rectangular |
| Cable Length | 2 m |
| Configuration | Miniature |
| Connection Type | Cable 3-Wire |
| Dimensions | 7.7mm x 21.8mm x 13.5mm |
| Frequency, Switching | 1,200 Hz (with light/dark ratio 1:1) |
| Housing Material | ABS/PCplastic |
| IP Rating | IP67 |
| Light Source | PinPoint LED (Average service life: 100,000 h at TU = 25 °C) |
| Measurement Range | 0.003-0.03 m |
| Output | PNP |
| Output Current | < 50 mA |
| Sensing Mode | Background Suppression |
| Sensing Range | 3 mm ... 30 mm (Object with 90 % reflectance (referred to standard white, DIN 5033)) |
| Series | |
| Supply Voltage | 10-30 VDC |
| Type | Reflective Sensors |
| Wave Length | 640 nm |
Overview

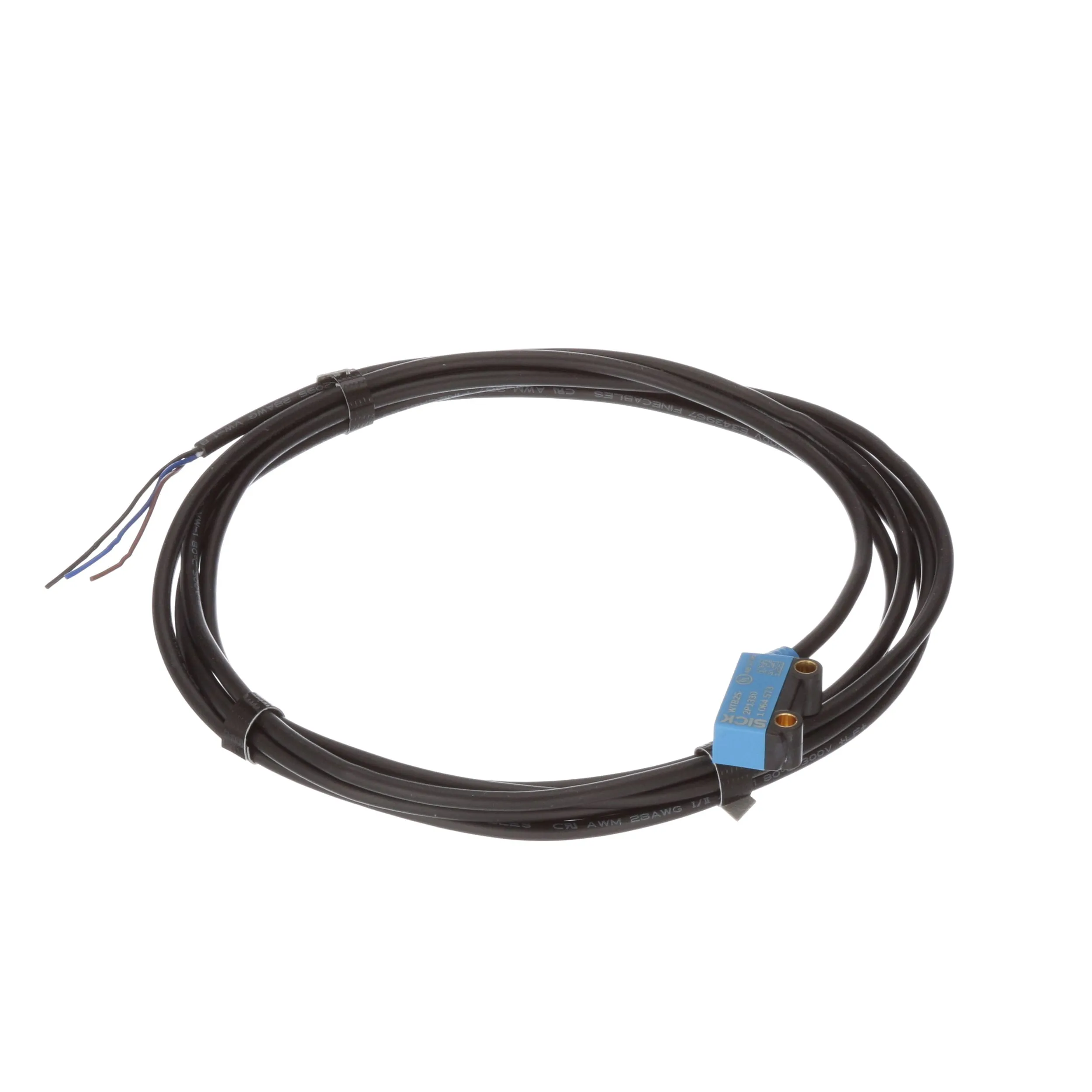

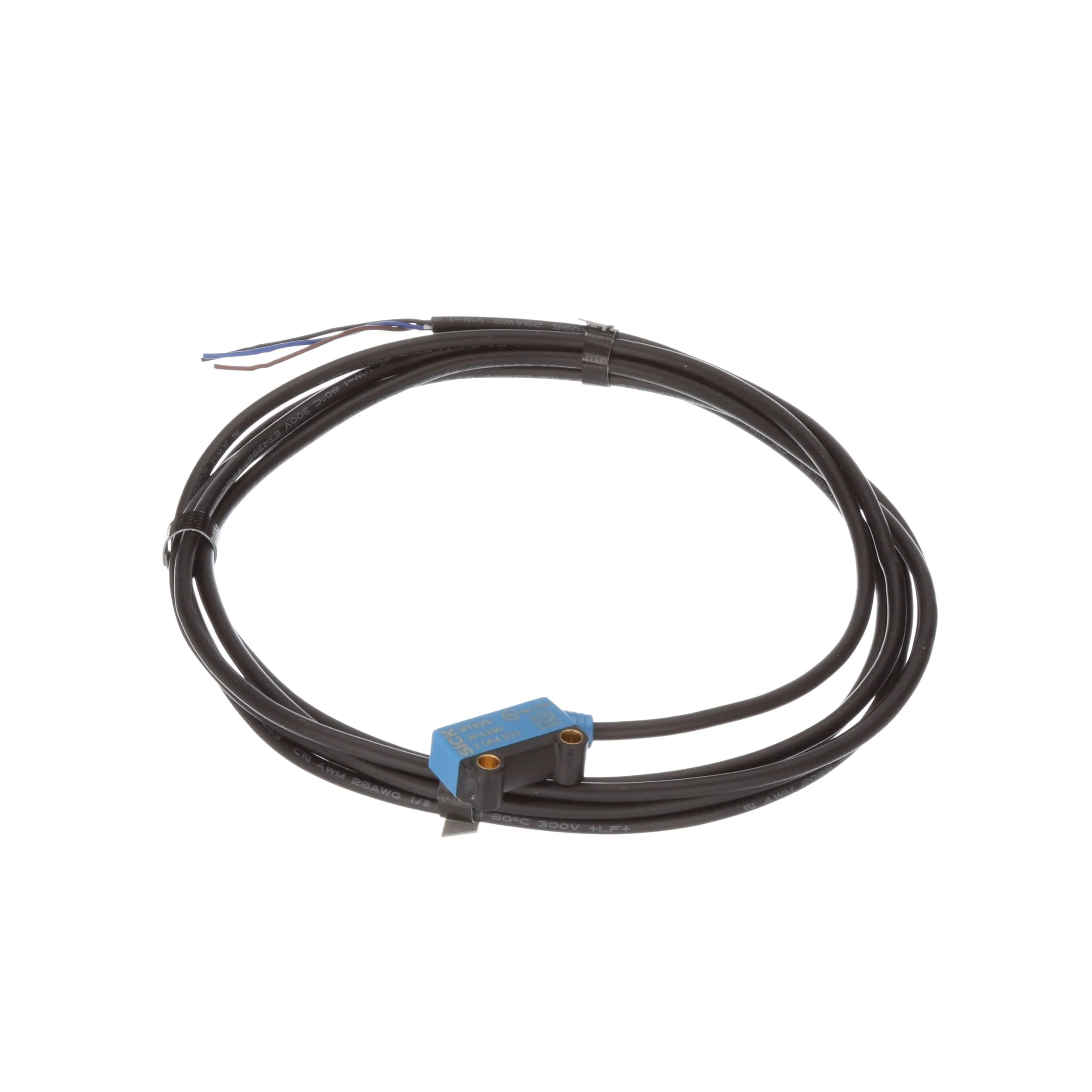

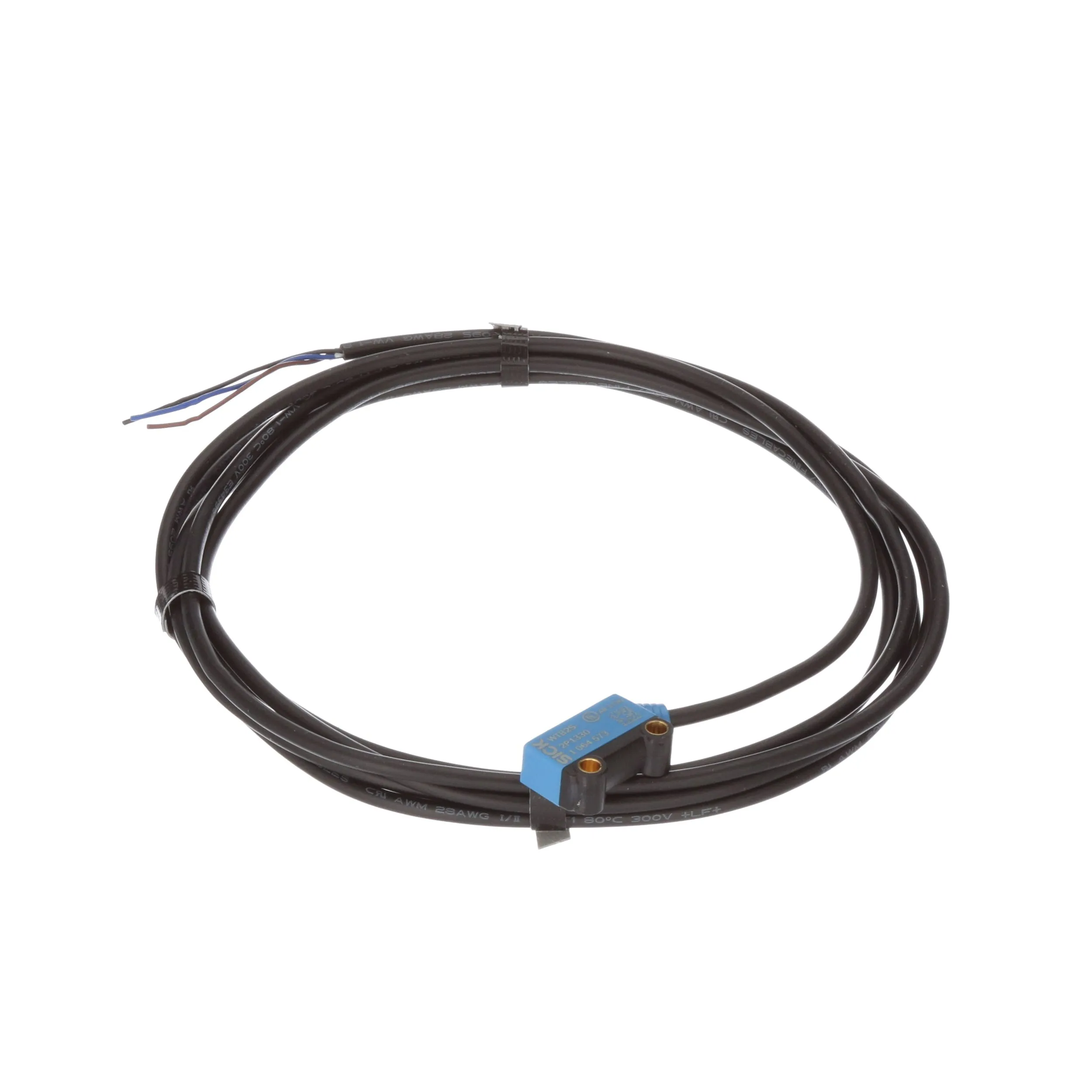

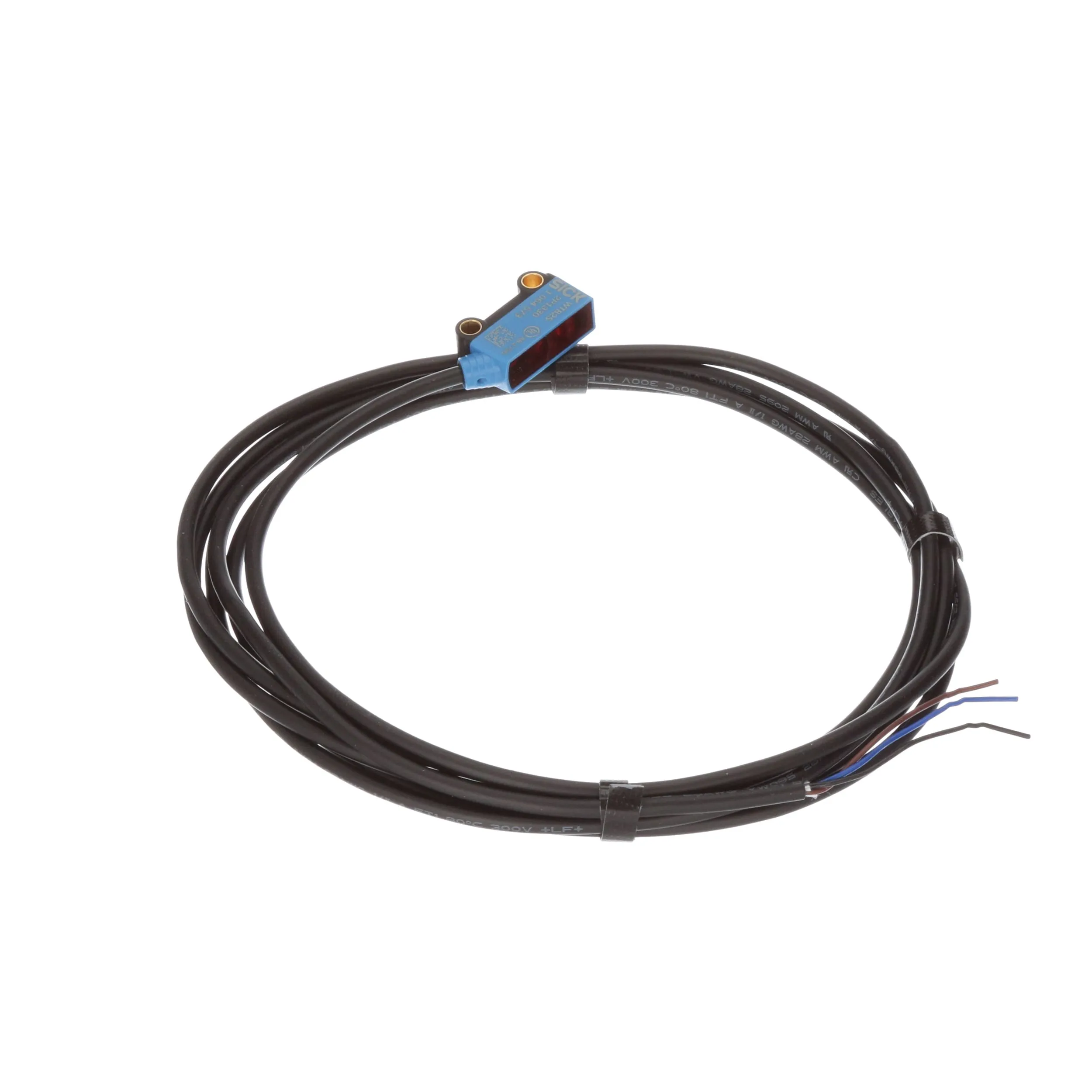

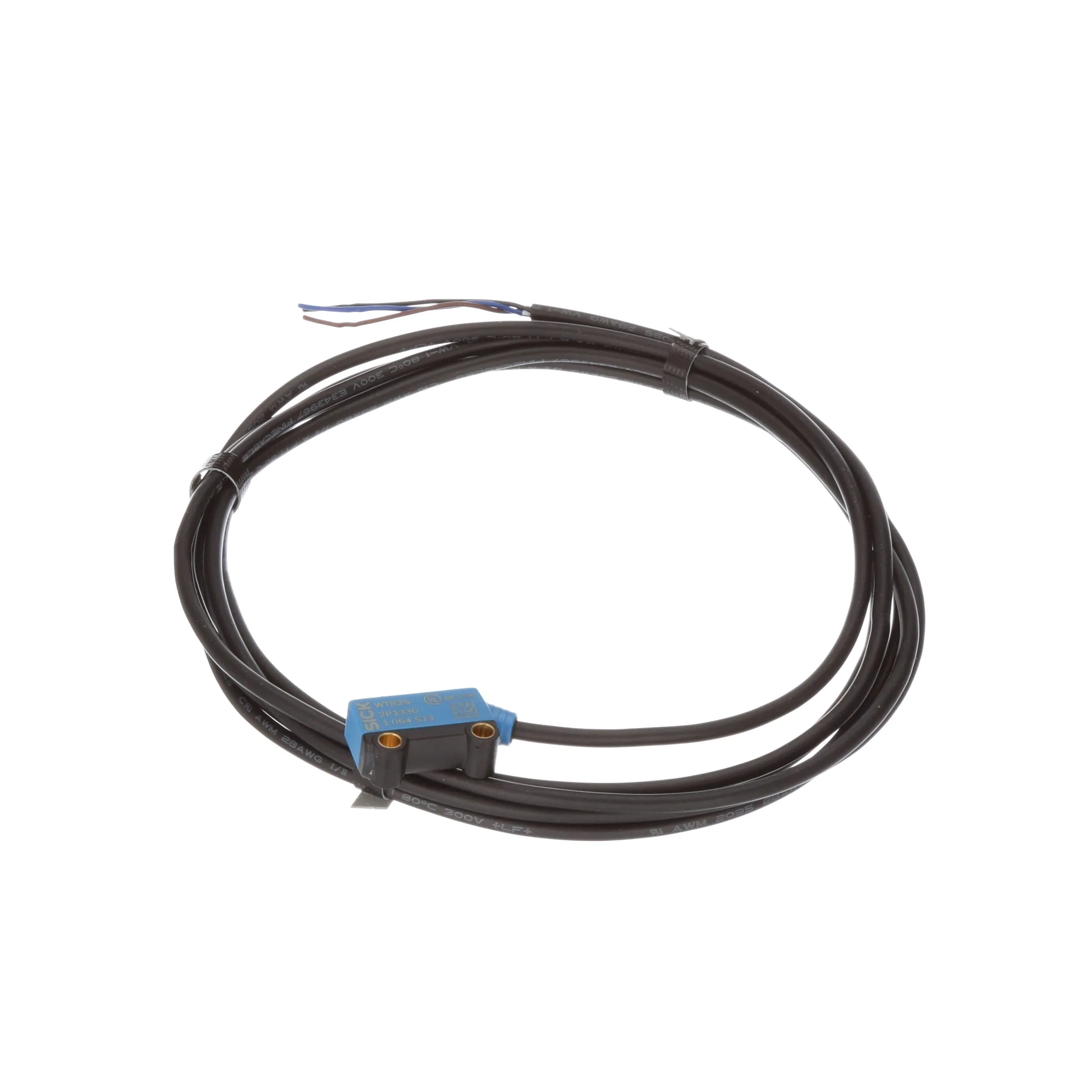

W2S-2 - Incredibly Small, Yet Powerful
Developing lighter, more compact, and more intelligent machines. The incredibly small latest generation W2S-2 miniature photoelectric sensor offers completely new machine design possibilities. Intelligent features: The sensors feature background suppression that enables detection of black objects with a reflectance of 1%. The W2S-2 also offers a world-class sensing range for this housing size. Whether it is used in machines in the pharmaceutical industry, in logistics handling applications or in automated assembly equipment, the ultra-compact W2S-2 offers optimal performance and high reliability in industrial environments. Industry 4.0 is already on board: Both the sensing distance as well as continuous monitoring are set via the controller. The W2S-2 reduces the load on the machine controller by using a counter, time stamp, and false tripping suppression functions. Precise programmable sensors, adjustable via a 3-turn potentiometer, and sensors with fixed sensing ranges of 15 mm, 30 mm, 45 mm, and 60 mm are also available.
At a Glance
