| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 6051030 |
| Body Style | Cylindrical |
| Connection Type | M12 4-Pin |
| Frequency, Switching | 15 Hz |
| Housing Material | Plastic PP |
| IP Rating | IP68 |
| Maximum Operating Temperature | 85 C |
| Measurement Range | 8 mm |
| Minimum Operating Temperature | -30 C |
| Mounting Type | M12 Threaded Non-Flush |
| Operating Temperature, Maximum | 85 C |
| Operating Temperature, Minimum | -30 C |
| Output | NPN/PNP-NO/NC |
| Primary Type | Capacitive Proximity Sensors |
| Sensing Mode | Capacitive |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 10-36 VDC |
Overview

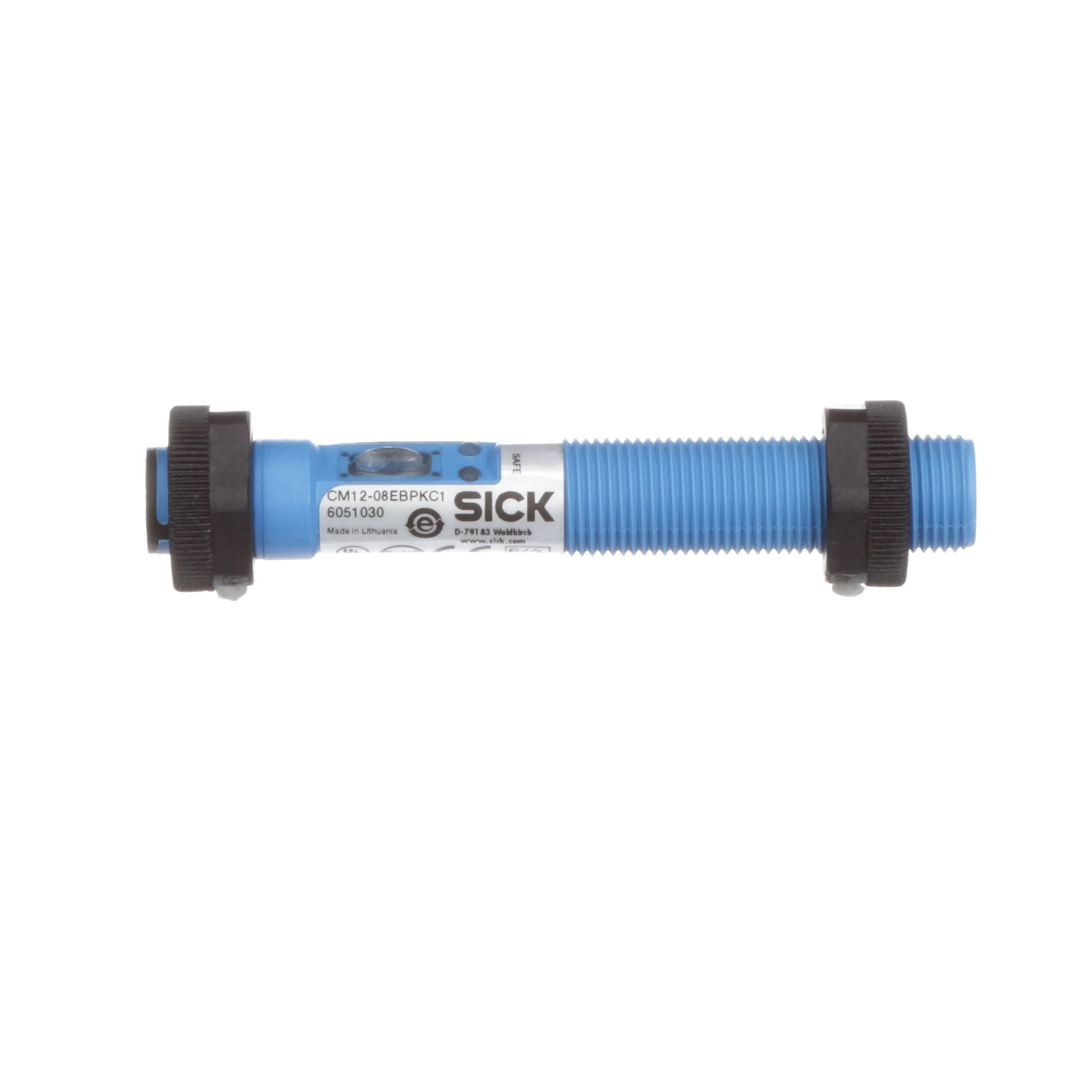

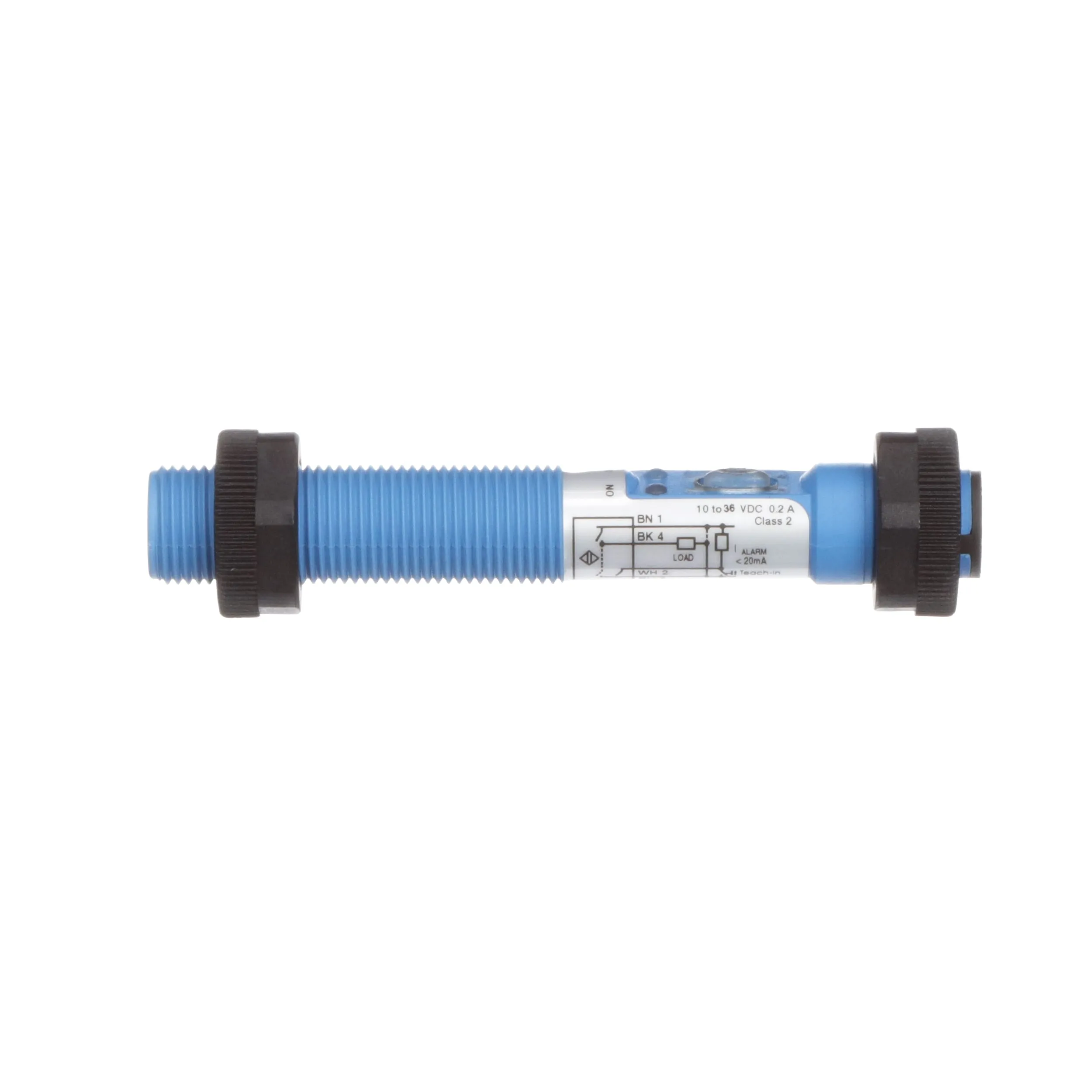

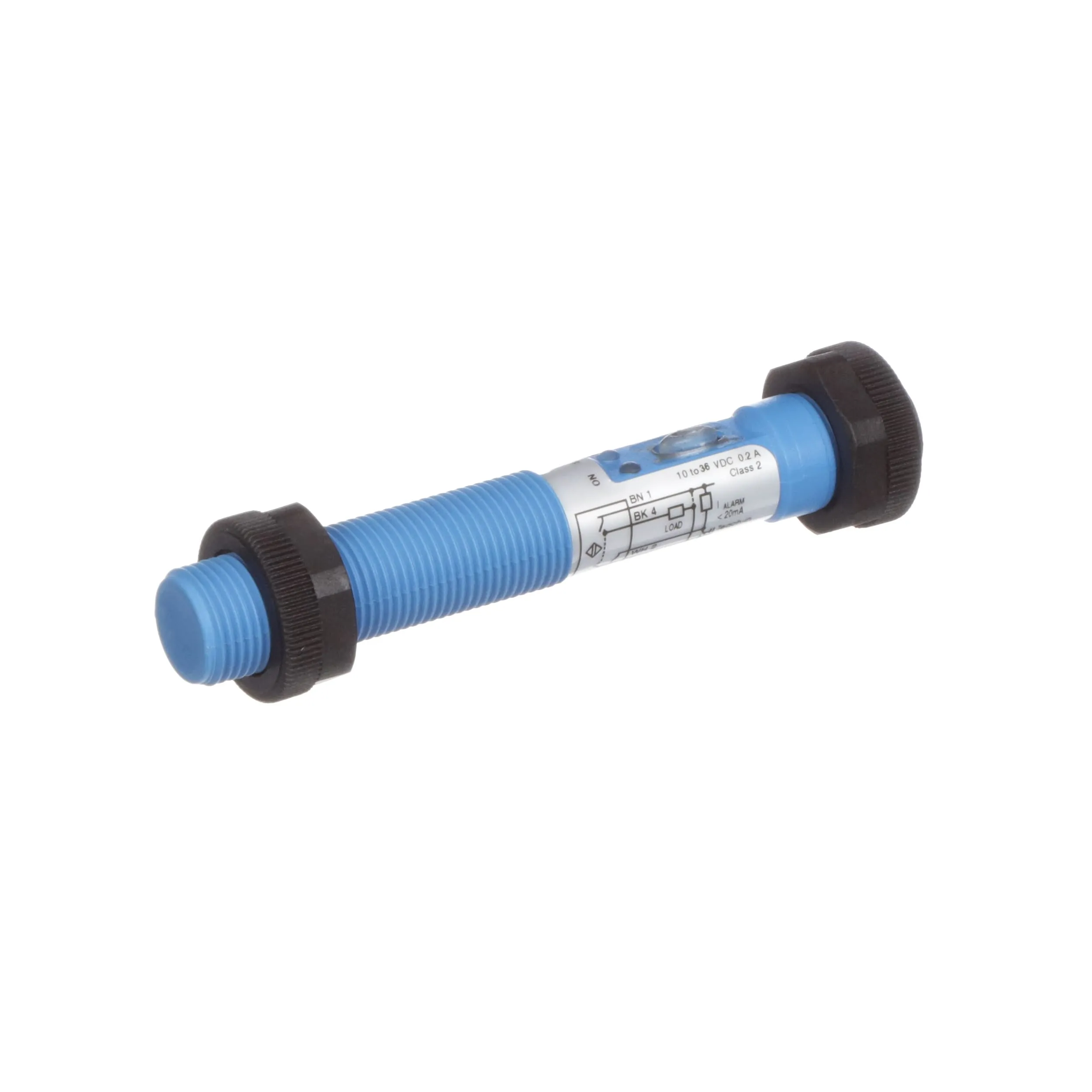

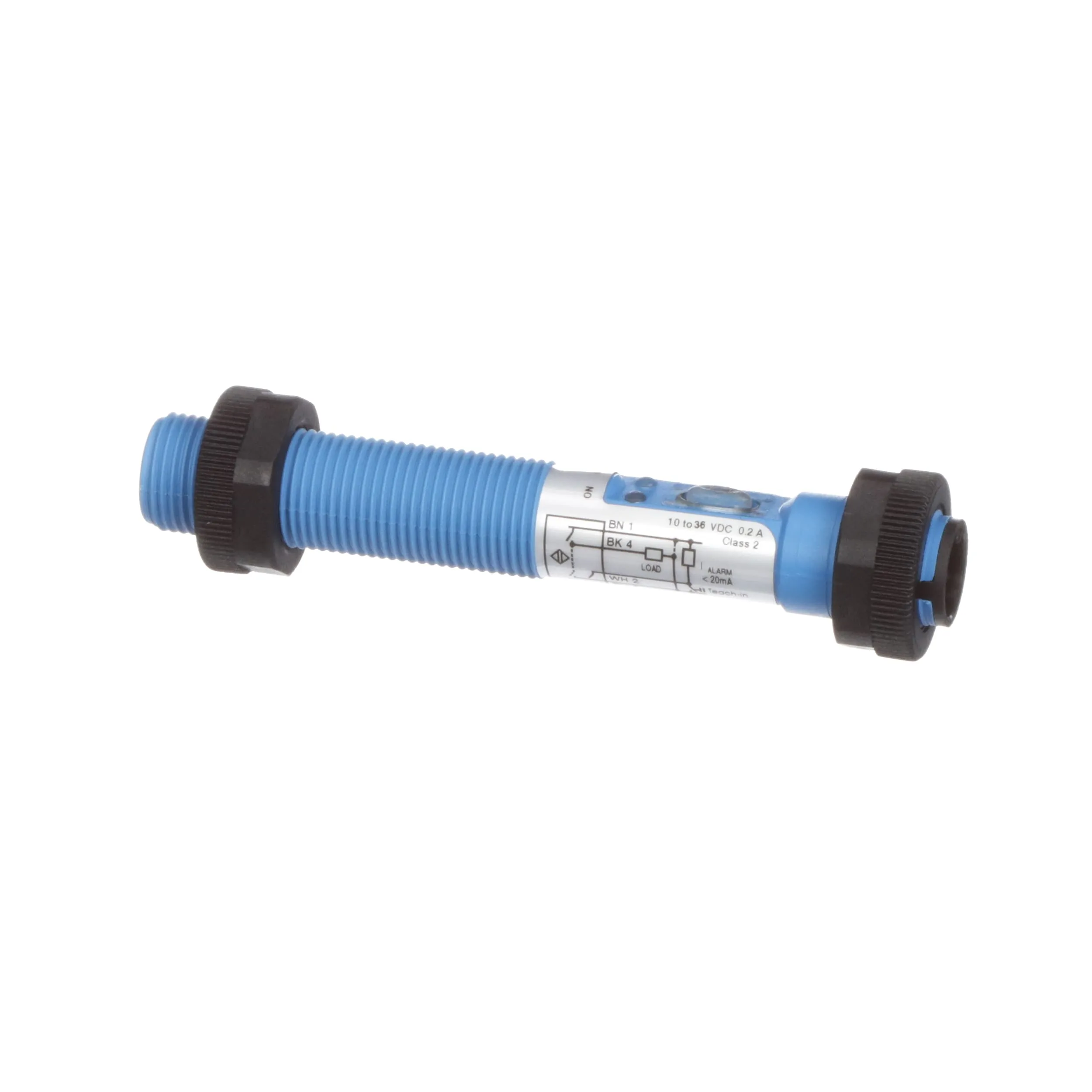

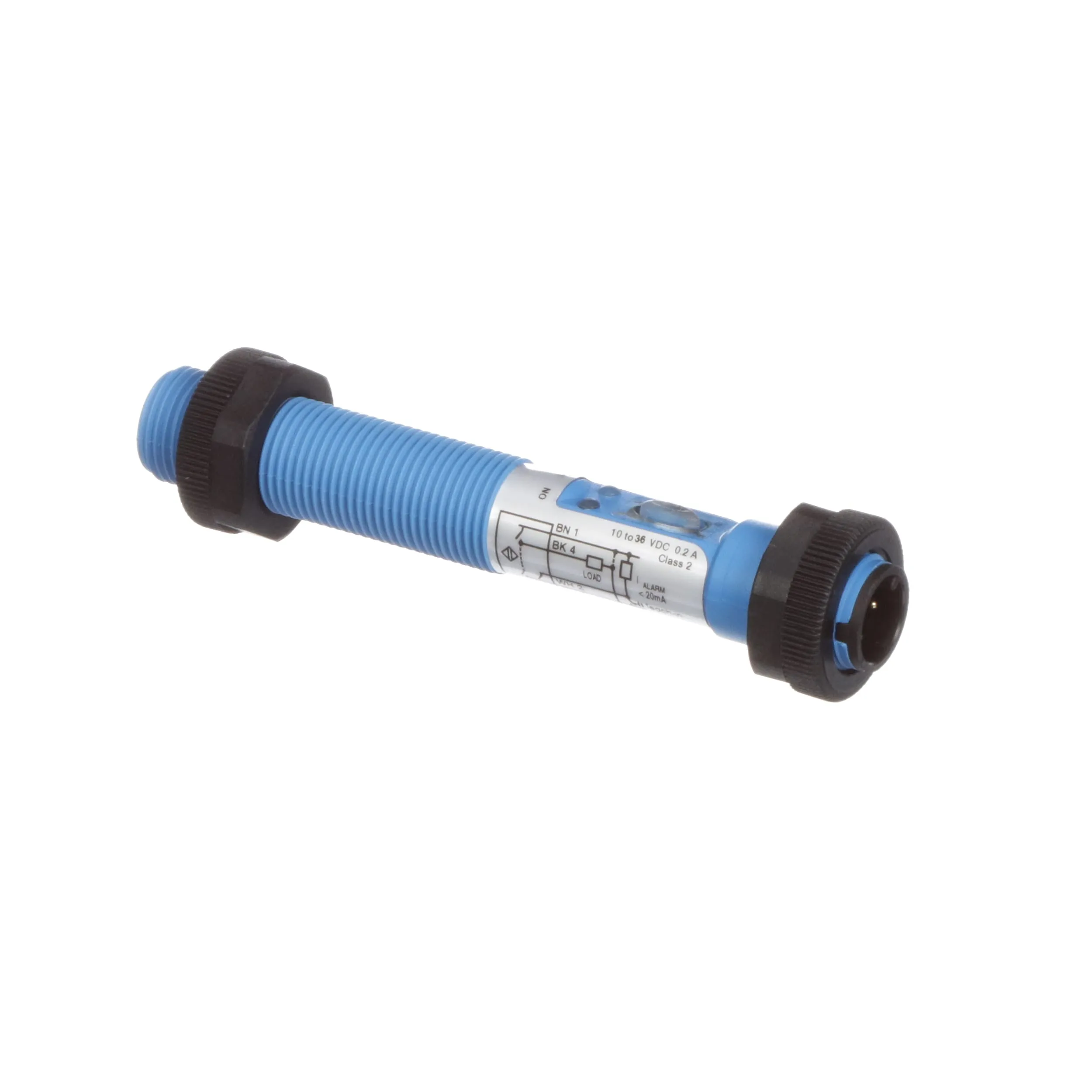

The CM12 has a number of excellent features. It is equipped with optimized moisture compensation technology and offers a high level of protection against electro-magnetic interference. The Dynamic Teach function enables you to adjust the sensor’s sensitivity to suit the prevailing conditions. The CM12 also automatically detects the NPN output or PNP output load. Teach allows you to switch between the NO and NC functions. The sensor has a compact design and long sensing range of up to 8 mm. Its fields of application are diverse and range from detecting objects in packaging for food, beverage, pharmaceutical, and cosmetic products to monitoring fill levels in print machine tanks or containers and supply lines for rubber and polymer granules.
