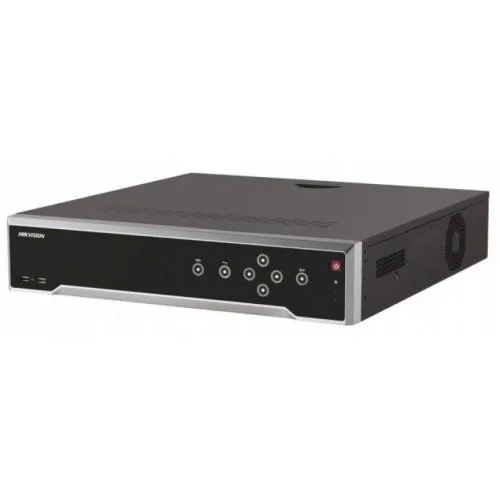

HIKVISION Embedded Plug & Play 4K NVR - 32 Channel (DS-7732NI-I4)

Product Description

• Up to 12 Megapixels resolution recording.
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K (3840×2160) resolution.
• 16/32-ch network cameras can be connected with 160M/256M incoming bandwidth.
• Up to 4 SATA interfaces.
• Support dual-os to ensure high reliability of system running.
• Support various VCA detection alarm and VCA search.
• Support H.265/H.264/MPEG4 video formats.

Specification

Video/Audio Input

IP video input: 32-ch

Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming bandwidth: 256Mbps

Outgoing bandwidth: 256Mpbs

Remote connection: 128

Video/Audio Output

HDMI Output: 1-ch, resolution: 4K (3840*2160)/60Hz, 4K

(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Audio Output: 1-ch, RCA (2.0Vp-p, 1KΩ)

Synchronous Playback: 16-ch

VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

Live view / Playback: 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/4CIF/DCIF/2CIF/CIF/QCIF

Capability: 4-ch@8MP,16-ch@1080P

Hard Disk

SATA: 4 SATA interfaces for 4HDDs

Capacity: Up to 6TB capacity for each HDD

External Interface

Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

Serial Interface: RS-232; RS-485;

USB Interface: Front panel: 2 × USB 2.0

                         Rear panel: 1 × USB 3.0

Alarm In: 16-ch

Alarm Out: 4-ch

General

Power Supply: 100 to 240 VAC

Consumption (without hard disk and POE): ≤20 W

Working Temperature: -10 ºC ~ 55 ºC ( 14 ºF~ 131 ºF)

Working Humidity: 10 % ~ 90 %

Chassis: 19-inch rack-mounted 1.5U chassis

Dimensions: 445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″)
