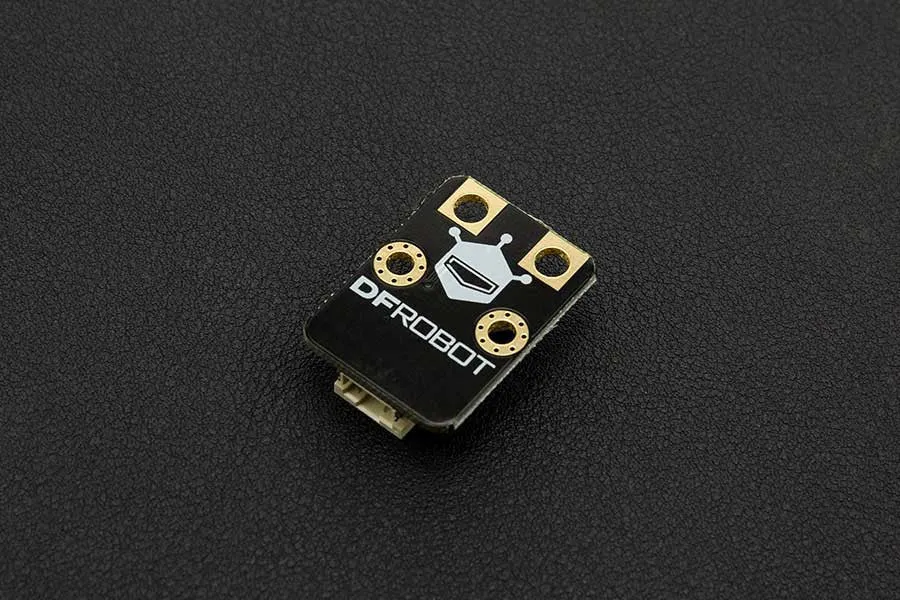

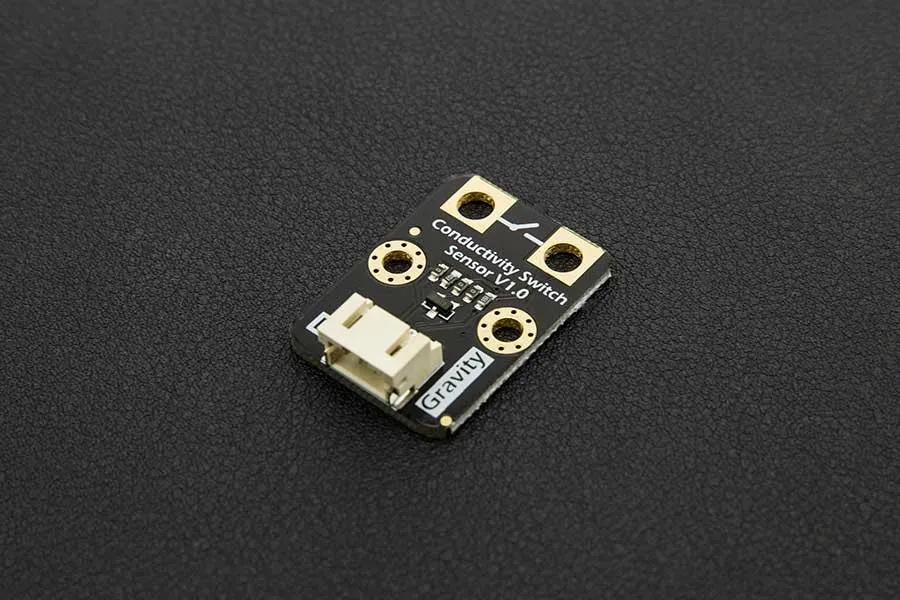

The Gravity Conductivity Sensor Switch module can be used to detect if an object has electrical conductivity. Its maximum detection value is 10MΩ. It can detect not only coins, wires, metal and other good conductors, but also the human body, fruit, plants and other conductors.

By touching the positive and negative terminals of the conductive switch, you can change the output state of the module. Use this to make interactive applications such as fruit pianos, musical wind chimes or interactive video game controllers so Super Mario using a bunch of bananas.

As a member of , the conductivity switch inherits all features of the Gravity Interface: plug and play, color identifiable pins, reverse polarity protection, etc. Using our , you can connect more sensors, and have more fun!





Features:

Detects conductivity in regular conductors

Can detect conductivity in the human body, fruit, plants and other conductors

Use to create innovative interactive art installations!

Specification:

Operating Voltage: 3.3 ~ 5V

Output Signal: Digital

Interface Mode: PH2.0-3P

Maximum Detecting Resistance: 10MΩ

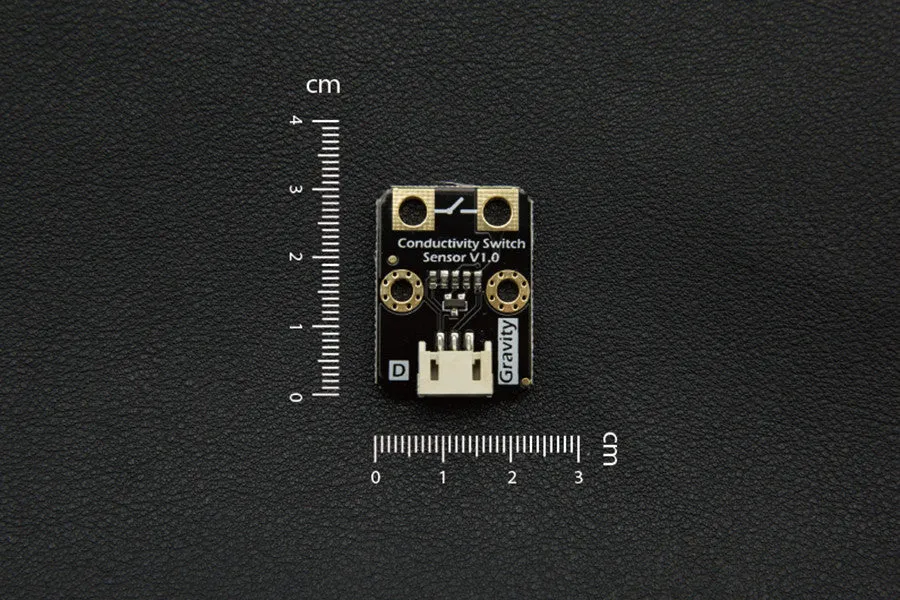

Dimension: 30 x 22mm

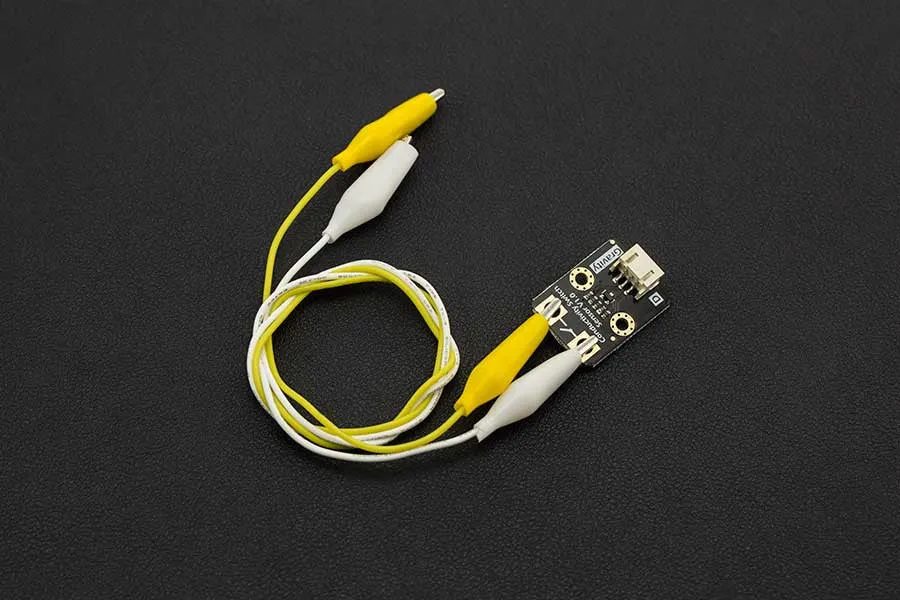

Alligator clip Length: 45cm

Weight: 22g

Documents:

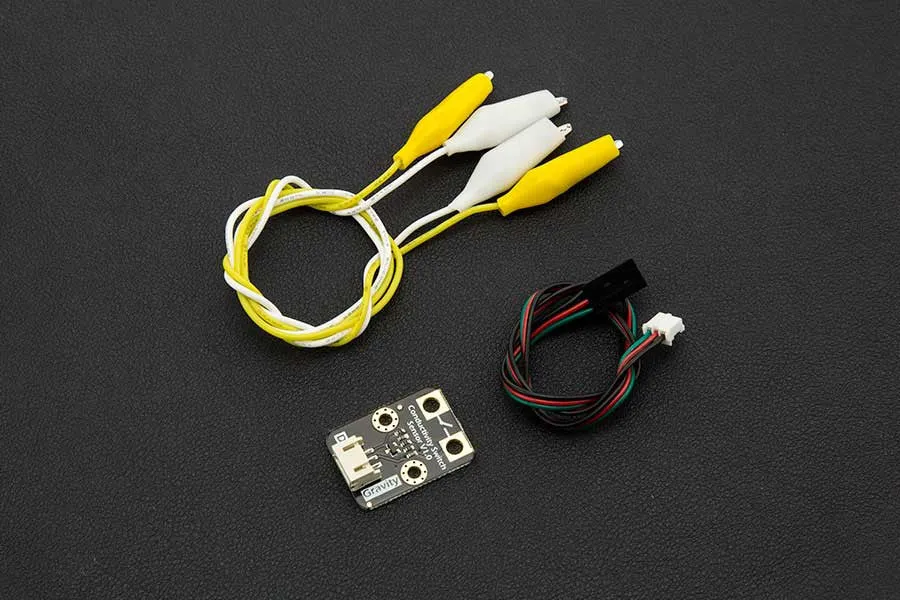

Product Includes:

Gravity: Conductivity Switch Sensor x1

Gravity Digital Sensor Cable For Arduinox1

Alligator Clip (Yellow/White) x2
