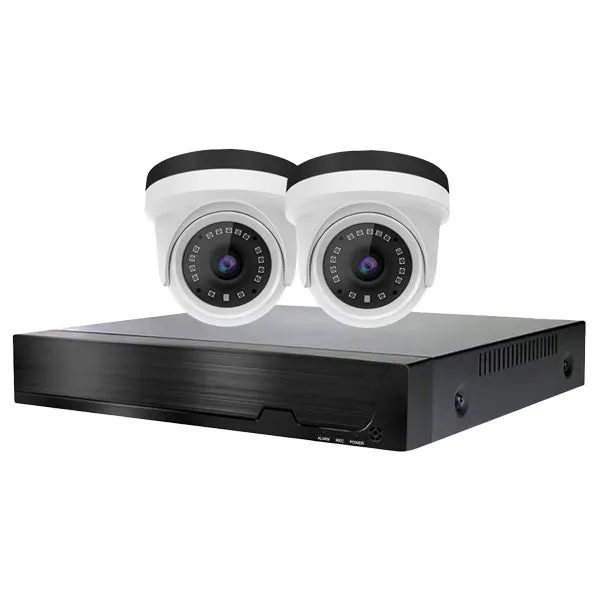

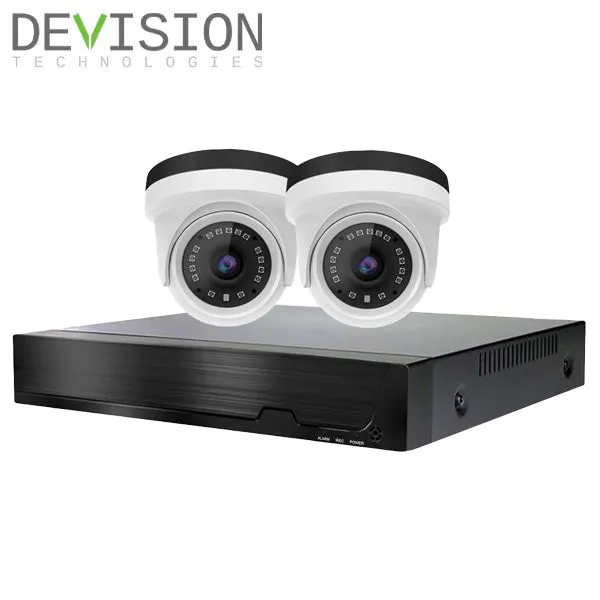

The Devision C240-P 2MP Fixed Eyeball HDCVI Camera is an effective, professional security camera. The device offers up to 2 megapixels resolution recording with a fixed 4mm lens. With this kit, you get 2 of the Devision C240-P Cameras as well as a Devision XD2504 4 Channel 5MN XVR with 1TB HDD included.
Features
- Camera Features:
- 1/3" CMOS Sensor
- Full HD resolution 1920 x 1080
- 15Pcs IR LEDs, IR Range 20m
- Supports TVI,AHD, CVI, CVBS output
- UTC Coaxial Control
- Easy installation, HD video transfer over coaxial cable
- XVR Features:
- Includes 1TB HDD Storage
- TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input
- Supports HD analog video encoding
- Supports HD analog HD network video input
- Supports pure HD network video input
- Supports various mobile phone monitoring (iPhone & Android)
- Supports multiple web browsers (IE / Chrome / Firefox / Safari)
- Supports VGA,HDMI output at the same time
- Supports STVI function
- Supports coaxial audio
- Supports Multi-Language
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Camera Specifications
| Camera |
|
| Image Sensor |
1/3" 2.0MP CMOS Sensor |
| Image Resolution |
1920x1080 |
| Effective Pixels |
2.0MP |
| TV System |
PAL/NTSC |
| Electronic Shutter |
1/10s~1/100,000s |
| S/N Ratio |
≥50dB |
| Min. Illumination |
0.05Lux@ (F2.0, AGC ON), 0LUX with IR |
| Scanning System |
Progressive Scan |
| Lens |
|
Lens
|
Board Lens 4mm/F2.0 |
| FOV |
H: 73.9°, V: 40° D: 86° |
| Lens Type |
Fixed |
| Night Vision |
|
| Infrared SMD LED |
10µ x 15 PCS |
| Infrared Distance |
20m |
| IR Cut Filter |
Yes |
| IR Status |
Under 10 Lux by CDS
|
| IR Power On |
CDS Auto Control |
| Day & Night |
Auto (ICR) / Color / B&W |
| Camera Features |
|
| OSD Menu Language |
Support |
| White Balance |
Auto |
| Gain Control |
Auto |
| UTC |
Support |
| General |
|
Housing
|
Plastic |
| Operation Temperature |
-20°C ~ 60°C |
| Working Humidity |
10% ~ 90%
|
Power Source
|
DC12V±10%, 250mA |
Dimensions
|
100 x 100 x 85mm
|
Weight
|
≤190g |
Dimensions (mm)
XVR Specifications
| System |
|
| Compression |
H.265
|
O/S
|
Embedded Linux O/S |
| Video and Audio |
|
| Video Input |
4CH, BNC |
| Preview Ability |
4*5MN@20fps（4 in 1）
4*4MN@25fps（4 in 1）
4*1080N@25fps（4 in 1
|
| Coding Ability |
4*5MN@12fps（4 in 1）
4*4MN@17fps（4 in 1）
4*1080N@15fps（4 in 1
|
| Decoding Ability |
4*5MN@12fps（4 in 1）
4*4MN@17fps（4 in 1）
4*1080N@15fps（4 in 1
|
| Video Output |
1CH VGA;1CH HDMI |
| Channel Mode |
Supports any channel mode combination (5MN analog 1080P digital) |
| Audio In & Out |
1/1, RCA |
| Video Standard |
PAL/NTSC |
| Storage |
|
| SATA |
1x SATA Interface |
| Capacity |
1TB Included
Up to 8TB Max. |
| File Format |
H.264, H.265, AVI |
| Backup Mode |
USB |
| Playback and Backup |
|
| Video Playback |
Auto/Timing/ Motion Detection |
| Sync Playback |
4CH |
| Search Mode |
Point-in-time search, calendar search, event search, channel search |
| Network |
|
| Ethernet |
10 / 100 Mbps,1 RJ45 |
| Network Function |
TCP/IP, DHCP, DDNS, NTP, SMTP |
| Interoperability |
ONVIF Standard |
| Smart Phone |
iPhone, Android |
| Hardware |
|
| Network Interface |
1x RJ45 |
| USB Interface |
2x USB2.0 |
| PTZ Interface |
Supports RS485 PTZ |
| Controlling Device |
Mouse |
| Special |
|
| Multi-Screen Display |
1/4 |
| Alarm Method |
Email Alarm |
| Two-Way Talk |
Support |
| Alarm Snapshot |
Support
|
| Intelligent Analysis |
Supports Motion Detection, Video Tampering, Video loss |
| General |
|
| Power Supply |
DC12V /2A |
| Consumption |
≤ 8 W (without HDD) |
| Working Temperature |
-10°C ~ 60°C |
| Working Humidity |
10% ~ 90% Humidity |
| Dimensions |
250 x 223 x 42mm |
| Weight |
800g |
