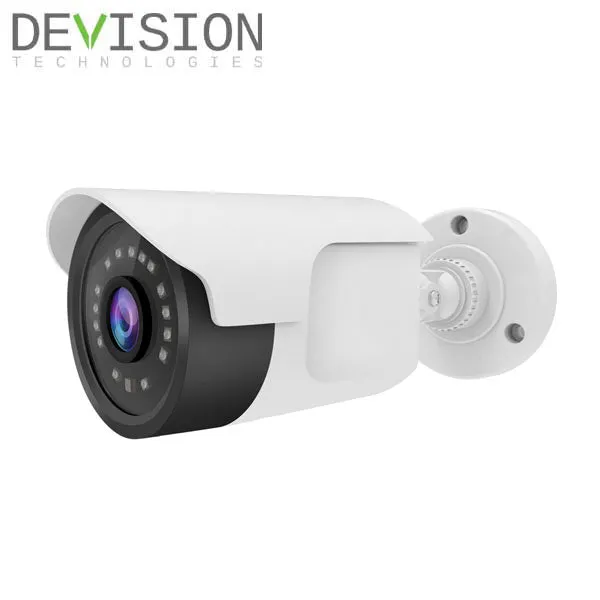

The Devision A240-P 2MP Fixed Bullet HDCVI Camera is an effective, professional security camera. The device offers up to 2 megapixels resolution recording with a fixed 4mm lens. With Ingress IP66 Protection, this camera is capable of withstanding outdoor conditions.
Features
- 1/3" CMOS Sensor
- Full HD resolution 1920 x 1080
- 15PCS IR LEDs, IR Range 20m
- Support TVI, AHD, CVI, CVBS output
- UTC Coaxial Control
- Easy installation, HD video transfer over coaxial cable
- Ingress Protection IP66
- Day/night functionality
- Wide temperature range: -20°C ~ 60°C (-4°F ~ 140°F)
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Specifications
| Camera |
|
| Image Sensor |
1/3" CMOS Censor |
| Image Resolution |
1920x1080 |
| Effective Pixels |
2.0MP |
| TV System |
PAL/NTSC |
| Electronic Shutter |
1/10s ~ 1/100,000s |
| S/N Ratio |
≥50dB |
| Min. Illumination |
0.05Lux@ (F2.0, AGC ON), 0LUX with IR |
| Scanning System |
Progressive Scan |
| Lens |
|
Lens
|
Board Lens 4mm/F2.0 |
FOV
|
H: 73.9°, V: 40° D: 86° |
| Lens Type |
Fixed |
| Night Vision |
|
| Infrared SMD LED |
10µ x 15 PCS |
| Infrared Distance |
20m |
| IR Cut Filter |
Yes |
| IR Status |
Under 10 Lux by CDS
|
| IR Power On |
CDS Auto Control |
| Day & Night |
Auto (ICR) / Color / B&W |
| Camera Features |
|
| OSD Menu Language |
Support |
| White Balance |
Auto |
| Gain Control |
Auto |
UTC
|
Support |
| Outputs |
TVI, AHD, CVI, CVBS |
| General |
|
Housing
|
Plastic |
Bracket
|
Yes |
| Operation Temperature |
-20°C ~ 60°C |
| Working Humidity |
10% ~ 90%
|
Power Source
|
DC12V±10%, 250mA
|
Dimensions
|
180 x 75 x 85mm
|
Weight
|
≤230g |
Ingress Protection
|
IP66
|
Dimensions (mm)
