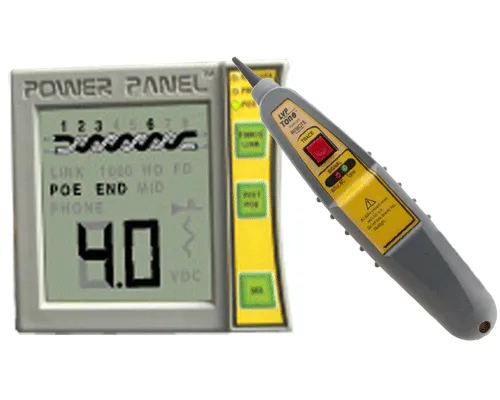

Byte Brothers POE1000ILT - Power Panle Inline Version w/ Probe

Tone Star Additional Features:

The Tone Star model includes a full featured, filtered probe for tracing tones (wire location). The probe features an ultrabright LED lighted tip, filtering to block fluorescent hum, volume control, 2 status LEDs, adapters for alarm wire, RJ11, RJ45, and coax connectors.

Inline Additional Features:

• Power Pass Thru: Two jacks allow PoE power to be passed to the PoE Device so it can be tested.
• Power Measurment: Placed Inline between two devices, the power draw of the devices can be measured into watts. Too much power draw is the number one reason for IP/PoE failure.

Standard Unit Features: P/N POE1000

• Scans pins and displays:
• PoE Power : Volts, watts, cable, pair location, end / midspan
• Advertised data switch speed (10, 100, 1000 MB/s), duplex
• Cable pair location.
• Phones ( digital, analog)
• Interactive Buttons:
• VoIP phone and IP Camera load simulator
• Link pulse transmit button
• Other Features: Tone generation, Port beacon, Auto shutoff
• 9V battery included
• Made in the U.S.A.
